FLOOD LIGHT
High-output floodlights for facades, signage, public spaces and large outdoor areas.
- Power
- 100 / 200 / 300 / 400W
- Beam
- 15° / 30° / 60° / 90° / 120°
- CCT
- 2700–6500K
- Protection
- IP66 · IK08
- Mounting
- U-bracket, 0–180°
KEY SPECIFICATIONS
Standard configuration
Typical reference configuration
- Series
- FL100 / FL200 / FL300 / FL400
- Power
- 100 / 200 / 300 / 400W
- Input
- 220–240V AC, 50/60Hz standard · 100–277V AC available depending on driver and project
- Power factor
- ≥0.90 typical
- THD
- <20% typical, depending on driver
- Luminous efficacy
- Approx. 120–160 lm/W depending on LED, driver and optics
- CCT
- 2700K / 3000K / 4000K / 5000K / 5700K / 6500K
- CRI
- ≥70 / ≥80 selectable
- Beam
- 15° / 30° / 60° / 90° / 120° · asymmetric optics available depending on project (typical asymmetric option approx. 135° × 60°)
- Dimming
- ON/OFF · 0–10V optional · DALI optional · DMX for dynamic or RGB versions
- Protection
- IP66 typical · IK08 typical
- Surge protection
- 6kV / 10kV options
- Operating temperature
- -30°C to +50°C typical
- Housing
- Die-cast aluminium
- Lens
- Tempered glass / optical PC depending on configuration
- Mounting
- U-bracket, 0–180° adjustable
- Lifetime
- L70 ≥50,000h typical · higher lifetime configurations available
Configurable options
Engineered to project requirements
- Power
- Beam
- CCT
- CRI
- Driver
- Control
- SPD
- Finish
- Bracket
- Cable
Typical configurations are shown for reference. Power, optics, colour temperature, control, input voltage, finish, mounting and dimensions can be adapted to project requirements. Final specifications are confirmed in the quotation and project data sheet.
CONFIGURED FOR THE PROJECT
Standard specifications provide a starting point. Power, optics, CCT, CRI, driver, control, mounting, finish and selected dimensions can be adapted to suit the project.

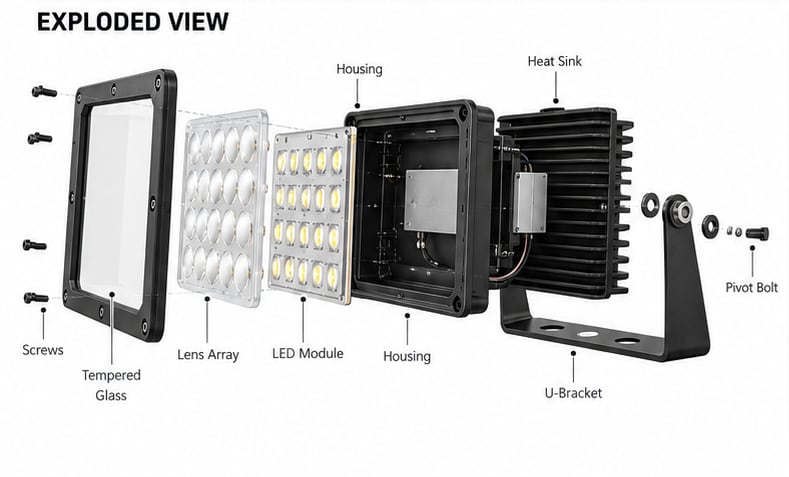

CONSTRUCTION & COMPONENTS
Series reference showing the internal components and installation method.
APPLICATION & LIGHTING EFFECT

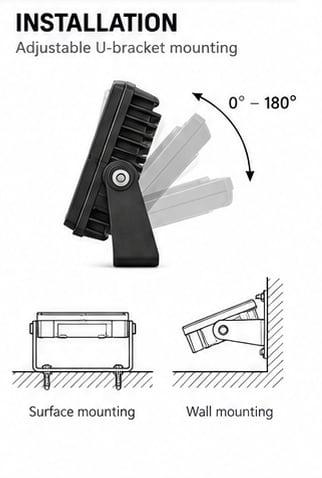

A floodlight works at distance: facades, signage, squares, yards and car parks. The U-bracket adjusts through 0–180°, so the same fitting can be mounted on the ground, on a wall or on a pole.
- Typical work
- Facades, signage, squares, car parks and industrial edges.
- Fixture
- Flood light
