STREET LIGHT
Road and area lighting on a 60 mm spigot, with an adjustable arm.
- Power
- 30 / 60 / 90 / 120W
- Series
- SL30 / SL60 / SL90 / SL120
- Road optics
- Type II · III · IV
- Protection
- IP66 · IK08
- Mounting
- 60 mm spigot, ±15° arm
KEY SPECIFICATIONS
Standard configuration
Typical reference configuration
- Series
- SL30 / SL60 / SL90 / SL120
- Power
- 30 / 60 / 90 / 120W · 150 / 180 / 200W available where required
- Input
- 220–240V AC, 50/60Hz · 100–277V option depending on driver
- Power factor
- ≥0.90
- THD
- <20% typical
- Luminous efficacy
- Approx. 120–175 lm/W depending on build
- CCT
- 2700 / 3000 / 4000 / 5000 / 6500K · recommended presentation 3000K / 4000K, other CCT on request
- CRI
- ≥70 standard road configuration · ≥80 optional
- Road optics
- Type II · Type III · Type IV · 75° × 135° · 90° × 150° · other distributions available
- Protection
- IP66
- Impact
- IK08
- Surge protection
- 6kV / 10kV options
- Dimming
- ON/OFF · 0–10V optional · DALI optional
- Smart control
- Photocell optional · NEMA / Zhaga socket optional where the supplier can provide it

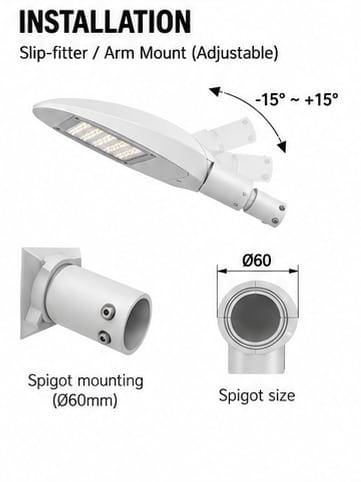

- Mounting
- Slip-fitter / pole arm
- Spigot
- Ø60 mm current series · approx. Ø32–76 mm possible on alternative designs
- Tilt
- ±15° current configuration
- Material
- Die-cast aluminium
- Finish
- White / grey / RAL custom
- Operating temperature
- Approx. -30°C to +50°C
- Lifetime
- L70 ≥50,000h typical

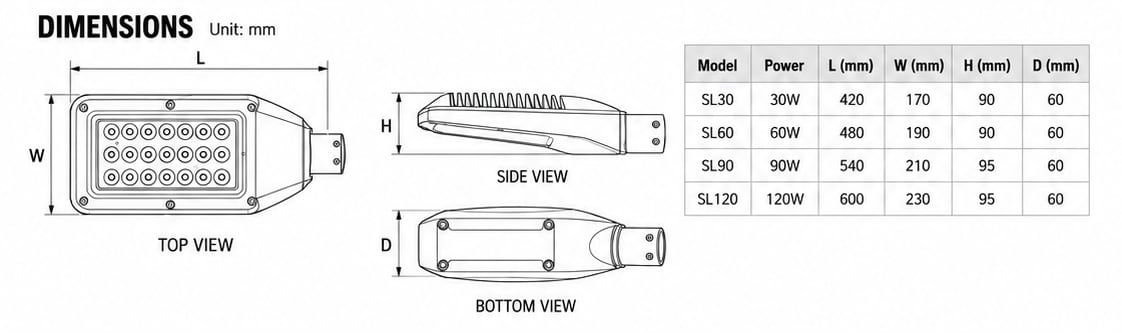

Reference configuration — dimensions
From the current product drawings; not a final manufacturing drawing until the factory confirms it.
- SL30
- Approx. 420 × 170 × 90 mm
- SL60
- Approx. 480 × 190 × 90 mm
- SL90
- Approx. 540 × 210 × 95 mm
- SL120
- Approx. 600 × 230 × 95 mm
Configurable options
Engineered to project requirements
- Power
- Lumen package
- Roadway optics
- CCT
- CRI
- Driver
- DALI
- Surge
- Spigot
- Finish
Typical configurations are shown for reference. Power, optics, colour temperature, control, input voltage, finish, mounting and dimensions can be adapted to project requirements. Final specifications are confirmed in the quotation and project data sheet.
CONFIGURED FOR THE PROJECT
Standard specifications provide a starting point. Power, optics, CCT, CRI, driver, control, mounting, finish and selected dimensions can be adapted to suit the project.

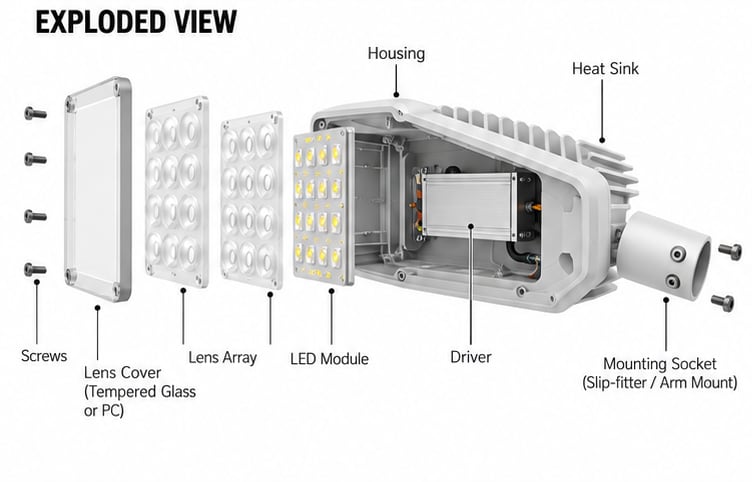

CONSTRUCTION & COMPONENTS
Series reference showing the internal components and installation method.
ROAD & AREA LIGHTING
A street light is mounted at height and lights over distance. Column spacing, mounting height and the arm angle determine whether the road surface is lit evenly. The arm on this fitting is adjustable, and the spigot size is 60 mm.
- Typical work
- Roads, car parks, campuses and industrial areas.
- Fixture
- Street light
