WALL WASHER
Linear wall washers that reveal facade texture and architectural depth with controlled light.
- Power
- 24 / 36 / 48W
- Length
- 300–1200 mm, custom
- Beam
- 10° × 60° / 30° × 60° / 60° × 60°
- Colour
- 2700–6500K · RGBW
- Control
- DMX512 · DALI · RDM
KEY SPECIFICATIONS
Standard configuration
Typical reference configuration
- Series
- WW24 / WW36 / WW48
- Power
- 24 / 36 / 48W standard reference · other wattages configurable
- Power and length
- Power is tied to length: confirm both together, not the wattage alone
- Length
- 300 / 320 / 500 / 600 / 1000 / 1200 mm · custom length available
- Input
- 24V DC, or 100–277V / 220–240V AC depending on build
- Colour
- 2700K / 3000K / 4000K / 5700K / 6500K · RGB · RGBW · dynamic white optional
- Beam
- 10° × 60° / 30° × 60° / 60° × 60° · custom optical distributions available
- Control
- ON/OFF · DMX512 · RDM optional · DALI for white versions where applicable
- Protection
- IP66 standard reference · IP67 versions available
- Impact
- IK07 / IK08 depending on housing
- Housing
- Extruded aluminium
- Lens
- Tempered glass / optical PC

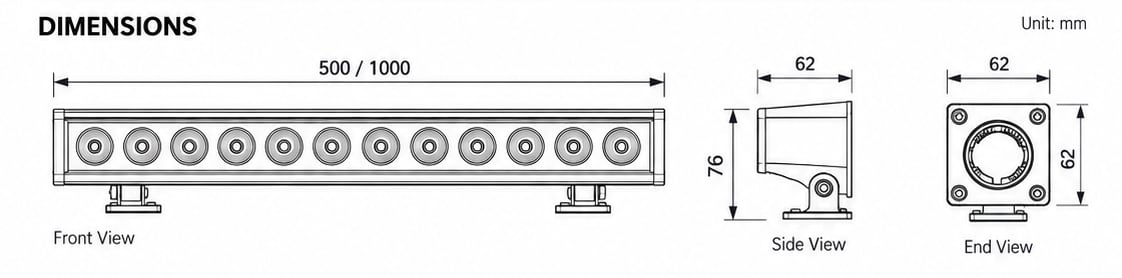

- Body section
- W approx. 50–75 mm · H approx. 55–110 mm depending on power and glare shield
- Mounting
- Adjustable brackets · glare shield optional
Configurable options
Engineered to project requirements
- Length
- Wattage
- Optics
- RGBW
- CCT
- DMX
- Housing finish
- Bracket
- Cable
Typical configurations are shown for reference. Power, optics, colour temperature, control, input voltage, finish, mounting and dimensions can be adapted to project requirements. Final specifications are confirmed in the quotation and project data sheet.
CONFIGURED FOR THE PROJECT
Standard specifications provide a starting point. Power, optics, CCT, CRI, driver, control, mounting, finish and selected dimensions can be adapted to suit the project.

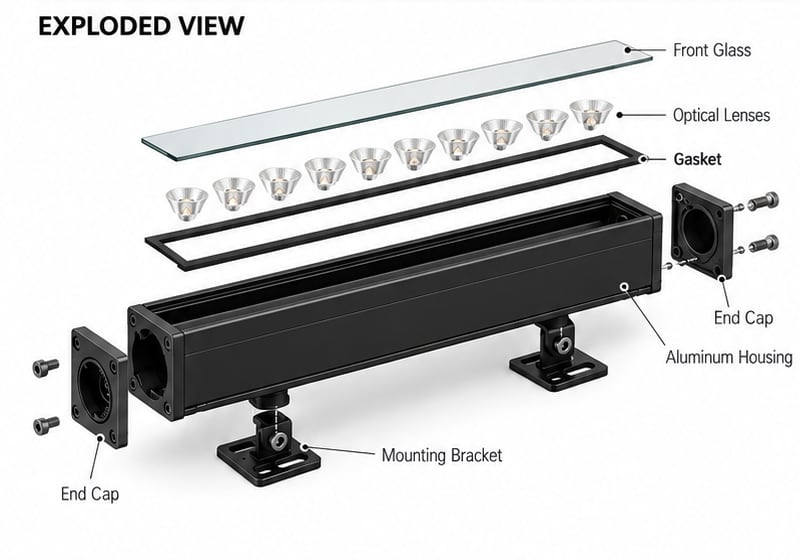

CONSTRUCTION & COMPONENTS

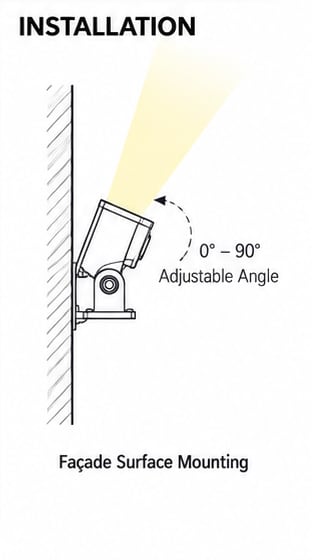

Series reference showing the internal components and installation method.
APPLICATION & LIGHTING EFFECT
A wall washer is mounted close to the surface and projects an asymmetric beam along it, so the wall is lit evenly rather than in separate bright spots. Runs are made to the project detail, and a glare shield is available.
- Typical work
- Arches, facades, colonnades and long wall runs.
- Fixture
- Wall washer
— click it to switch the light on
