MEDIA FACADE
Pixel nodes arranged in strings for dynamic facade and architectural lighting.
- Type
- Pixel node · string node
- Power per node
- 0.5–3W typical
- Input
- 24V DC
- Control
- DMX512 · SPI
KEY SPECIFICATIONS
Standard configuration
Typical reference configuration
- Series
- PL01 / PL02
- Type
- Pixel node · string node
- Power per node
- Typical 0.5–3W · 1W per node is a common reference configuration
- Input
- 24V DC typical
- Colour
- RGB · RGBW · white · dynamic white optional
- Control
- DMX512 · SPI · Art-Net / sACN via controller optional
- Node spacing
- 100 / 150 / 200 / 300 mm · custom spacing
- Node size
- Approx. 30–40 mm class · typical reference 31 × 32 × 17 mm up to approx. 36 × 36 × 30 mm depending on lens
- Viewing angle
- Approx. 105° / 165° / 200° depending on lens
- Protection
- IP66 / IP67
- Housing
- UV-resistant polycarbonate
- Cable
- 2 / 3 / 4 / 5-core with waterproof connectors
- Operating temperature
- Typical -30°C to +50°C, project dependent
Power & control system
Supply and protection belong to the system, not to each node:
- Power supply
- 24V DC
- Controller
- DMX / SPI / Ethernet gateway
- PSU enclosure
- IP65 / IP66 options
- Surge
- 4–6kV, or higher project-specific protection based on system design
Configurable options
Engineered to project requirements
- Node pitch
- Node size
- Lens
- RGBW
- String length
- Cable
- Mounting rail
- Control protocol
Typical configurations are shown for reference. Power, optics, colour temperature, control, input voltage, finish, mounting and dimensions can be adapted to project requirements. Final specifications are confirmed in the quotation and project data sheet.
CONFIGURED FOR THE PROJECT
Standard specifications provide a starting point. Power, optics, CCT, CRI, driver, control, mounting, finish and selected dimensions can be adapted to suit the project.

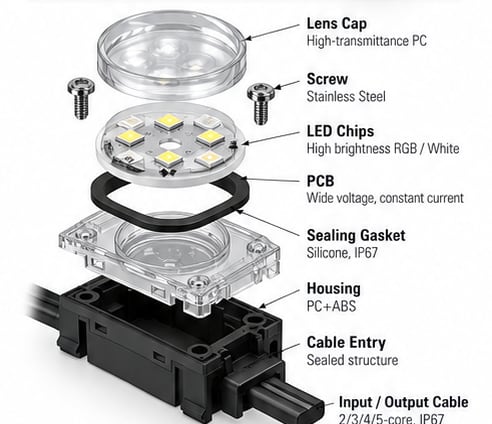

CONSTRUCTION & COMPONENTS

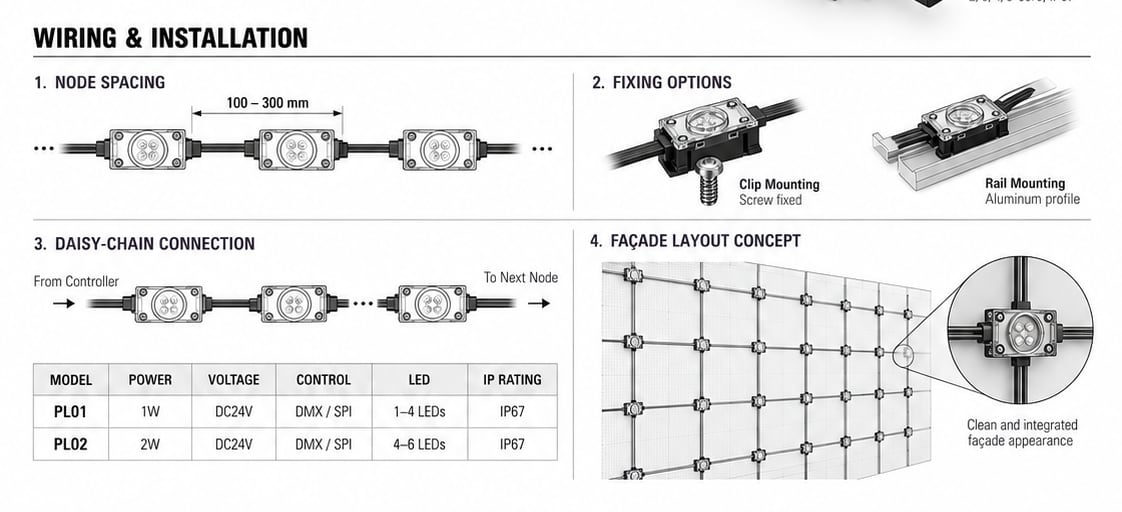

Series reference showing the internal components and installation method.
PIXEL LIGHTING FOR DYNAMIC FACADES
Pixel nodes are installed in strings along a cable, a colonnade or a tree line where the design requires individual points of light rather than continuous illumination.
- Typical work
- Cables, colonnades, tree lines and decorative facades.
- Fixture
- Media facade
