HIGH BAY
High-output lighting for warehouses, workshops and production areas, with controlled glare.
- Power
- 100 / 150 / 200 / 240W
- Beam
- 60° / 90° / 100° / 120°
- CCT
- 3000K / 4000K / 5000K / 6500K
- Protection
- IP65 · IK08
- Mounting
- Hook · chain · pendant
KEY SPECIFICATIONS
Standard configuration
Typical reference configuration
- Series
- HB100 / HB150 / HB200 / HB240
- Power
- 100 / 150 / 200 / 240W
- Input
- 100–277V AC or 220–240V AC, 50/60Hz depending on project
- Power factor
- ≥0.90
- THD
- <20% typical
- Luminous efficacy
- Approx. 140–190 lm/W
- Luminous flux
- Typical reference only: approx. 14,000–17,000 lm at 100W · 21,000–28,500 lm at 150W · 28,000–38,000 lm at 200W — not a fixed guarantee
- CCT
- 3000K / 4000K / 5000K / 6500K
- CRI
- ≥80 typical
- Beam
- 60° / 90° / 100° / 120°
- Optical accessories
- Anti-glare louvre · reflector · diffuser
- Dimming
- 0–10V · DALI optional
- Sensor
- Motion / microwave / daylight sensor optional
- Protection
- IP65 typical · IK08 typical
- Housing
- Die-cast aluminium
- Mounting
- Hook · chain · pendant · surface bracket optional
- Dimensions
- Diameter approx. Ø250–320 mm · height approx. 120–160 mm
- Operating temperature
- Approx. -30°C to +50°C
- Lifetime
- 50,000h+ typical
Configurable options
Engineered to project requirements
- Power
- Lumen package
- CCT
- Beam
- Louvre
- Sensor
- Dimming
- Mounting
Typical configurations are shown for reference. Power, optics, colour temperature, control, input voltage, finish, mounting and dimensions can be adapted to project requirements. Final specifications are confirmed in the quotation and project data sheet.
CONFIGURED FOR THE PROJECT
Standard specifications provide a starting point. Power, optics, CCT, CRI, driver, control, mounting, finish and selected dimensions can be adapted to suit the project.

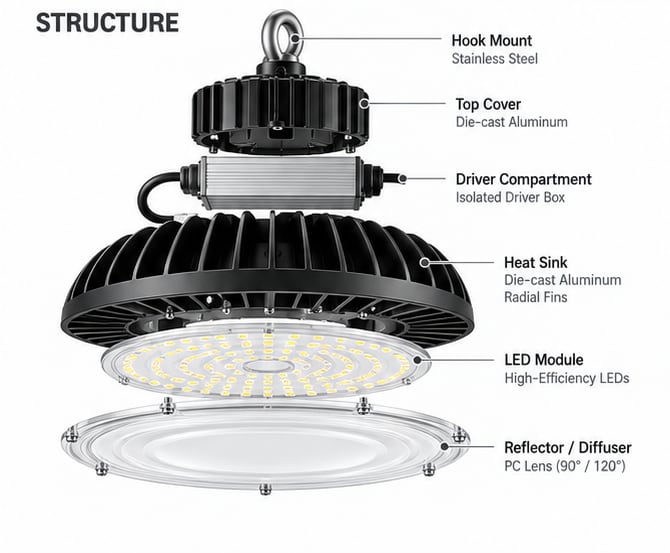

CONSTRUCTION & COMPONENTS

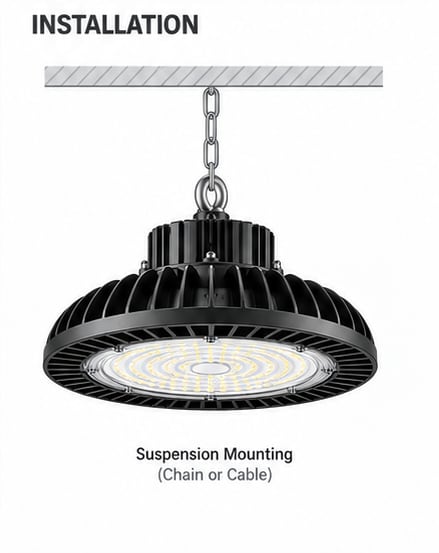

Series reference showing the internal components and installation method.
CONTROLLED LIGHT FOR HIGH-BAY SPACES
A high bay is mounted above the working area, so glare control matters as much as light output. The anti-glare louvre directs light onto the floor and out of the operator's line of sight. Dimmable models accept 0–10V control.
- Typical work
- Warehouses, workshops, logistics yards and production halls.
- Fixture
- High bay
— click it to switch the light on
Need this on a project?
