LINEAR LIGHT
Continuous linear lighting for architectural outlines, ceilings, railings, pathways and structural details.
- Power
- 12 / 15 / 24W per module
- Module length
- 300 / 600 / 1000 / 1200 mm
- Colour
- 2700–5000K · RGB · RGBW
- Control
- 0–10V · DALI · DMX512 · SPI
KEY SPECIFICATIONS
Standard configuration
Typical reference configuration
- Series
- LL12 / LL15 / LL24
- Power
- 12 / 15 / 24W per module — not a total for a run
- Power density
- Typical 8–24W/m depending on module
- Module length
- 300 / 600 / 1000 / 1200 mm · custom length
- Input
- 24V DC common · AC integrated versions available for some configurations
- Colour
- 2700K / 3000K / 4000K / 5000K · RGB · RGBW · dynamic white
- CRI
- ≥80 typical · ≥90 optional
- Optics
- Diffused 120° typical for direct view · narrow and asymmetric optics depending on product design
- Control
- ON/OFF · 0–10V · DALI · DMX512 · SPI — depending on product structure, not all versions
- Protection
- IP66 / IP67
- Housing
- Extruded aluminium · PC diffuser

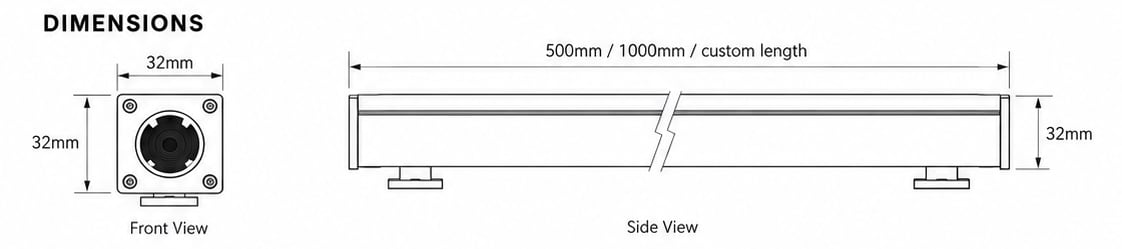

- Section
- Approx. 20–40 mm

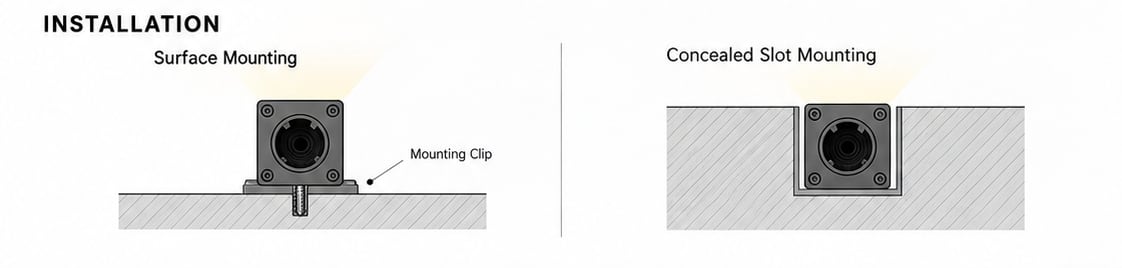

- Mounting
- Surface clip · bracket · recessed channel · custom fixing
Configurable options
Engineered to project requirements
- Length
- Section
- Output
- CCT
- RGBW
- Control
- Diffuser
- Mounting
Typical configurations are shown for reference. Power, optics, colour temperature, control, input voltage, finish, mounting and dimensions can be adapted to project requirements. Final specifications are confirmed in the quotation and project data sheet.
CONFIGURED FOR THE PROJECT
Standard specifications provide a starting point. Power, optics, CCT, CRI, driver, control, mounting, finish and selected dimensions can be adapted to suit the project.

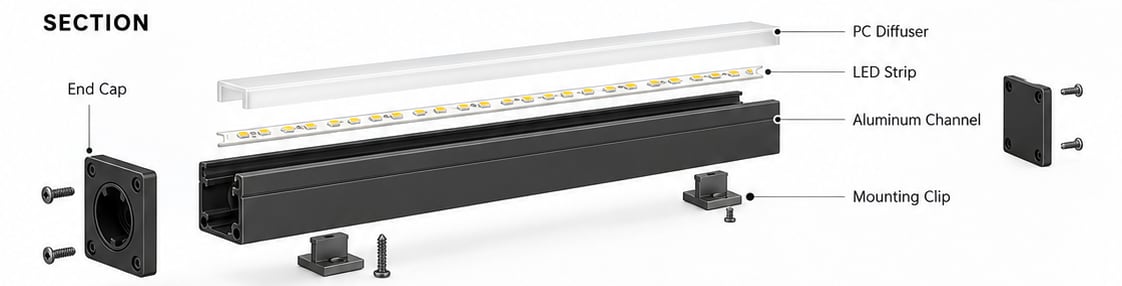

CONSTRUCTION & COMPONENTS
Series reference showing the internal components and installation method.
CONTINUOUS ARCHITECTURAL LINES
Linear light defines a line rather than lighting a surface: an outline, a cove, a handrail or a stair edge. Runs are made to the lengths the project detail requires, including custom lengths.
- Typical work
- Outlines, coves, handrails and stair edges.
- Fixture
- Linear light
