LANDSCAPE LIGHT
Outdoor lighting for paths, trees, gardens, public landscapes and architectural surroundings.
- Types
- Spike · in-grade
- Power
- 3 / 6 / 9 / 12 / 18 / 24W
- Beam
- 15° / 24° / 36° / 60°
- Protection
- IP65 / IP66 / IP67
KEY SPECIFICATIONS
Standard configuration
Typical reference configuration
A · Spike light
- Power
- 3 / 6 / 9 / 12 / 18 / 24W
- Typical output
- Approx. 250–2000 lm depending on power and optics
- Colour
- 2700 / 3000 / 4000K · RGB / RGBW optional
- CRI
- ≥80 · ≥90 optional
- Beam
- 15° / 24° / 36° / 40° / 60°
- Input
- 24V DC, or 100–240V AC depending on build
- Protection
- IP65 / IP66 / IP67
- Impact
- IK06–IK08
- Material
- Die-cast aluminium or stainless steel depending on environment
- Body

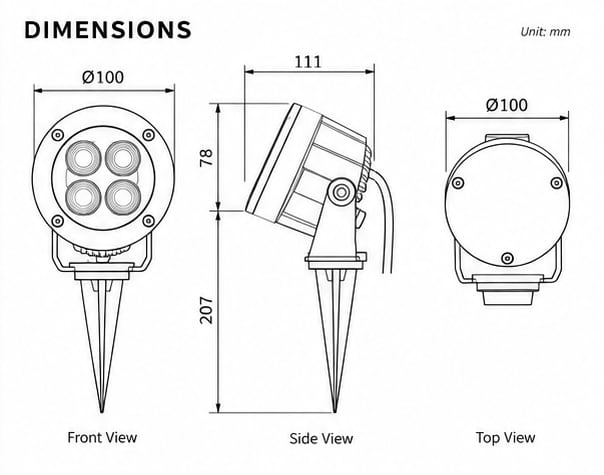

- Ø60–100 mm · body length approx. 90–160 mm · total height with spike approx. 250–400 mm
- Mounting
- Ground spike · surface base optional
B · In-grade light
- Power
- 3 / 6 / 9 / 12 / 18 / 24W
- Colour
- 2700 / 3000 / 4000K · RGBW optional
- Beam
- 15° / 24° / 36° / 60° · asymmetric optional
- Protection
- IP67 typical · IP68 only where the actual product supports it
- Impact
- IK08 / IK10 depending on model
- Trim
- Stainless steel / aluminium
- Diameter
- Ø80–180 mm
- Cut-out
- Ø65–160 mm
- Recessed depth
- 90–180 mm
Configurable options
Engineered to project requirements
- Beam
- CCT
- RGBW
- Trim
- Housing
- Cable
- Low-voltage input
Typical configurations are shown for reference. Power, optics, colour temperature, control, input voltage, finish, mounting and dimensions can be adapted to project requirements. Final specifications are confirmed in the quotation and project data sheet.
CONFIGURED FOR THE PROJECT
Standard specifications provide a starting point. Power, optics, CCT, CRI, driver, control, mounting, finish and selected dimensions can be adapted to suit the project.

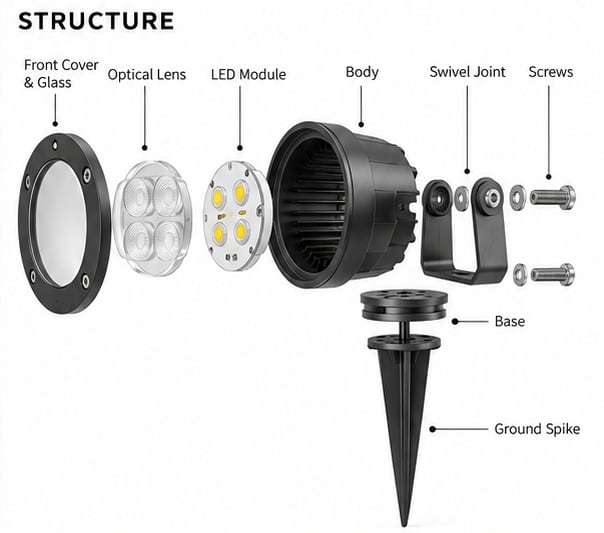

CONSTRUCTION & COMPONENTS

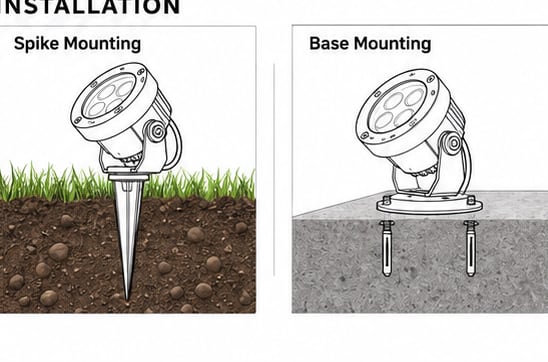

Series reference showing the internal components and installation method.
APPLICATION & LIGHTING EFFECT
In-grade and spike fittings direct light upward onto a wall, a tree trunk or a sign, from a position that is not visible in the finished scheme. The housing and the cable entry are the parts that determine how the fitting performs outdoors over time.
- Typical work
- Gardens, paths, water edges, plazas and planting beds.
- Fixture
- Landscape light
— click it to switch the light on
